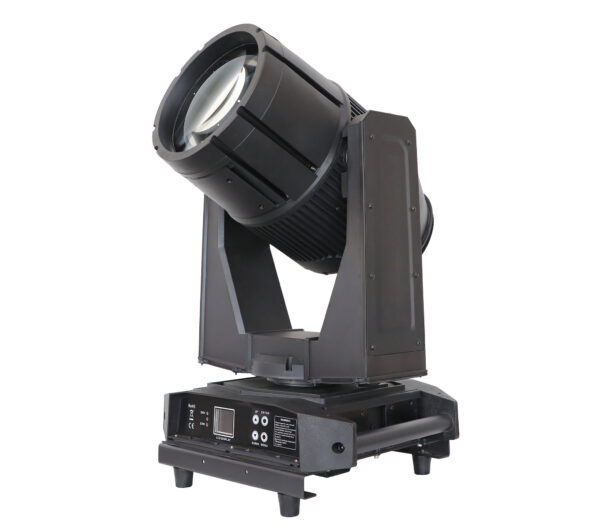

Product Overview
-
Input Voltage: AC 90-240V, 50/60Hz
-
Rated Power: 800W
-
Light Source: 550W (OSRAM)
-
Source Lifespan: 2,000 hours
-
Color Temperature: 8000K
-
Color System: Color Wheel: 13 Colors + Rainbow Effect + Frost Function
-
Gobo System: Gobo Wheel: 17 Fixed Gobos + 1 Open
-
Focus System: Motorized Focus
-
Frost: Frost function for soft beam effects
-
Strobe: Dual independent strobe effects, 0.5-20 Hz, adjustable speed
-
Motors: High-precision three-phase stepper motors for X/Y axes, ensuring high-speed stability and accurate positioning.
-
Dimming Curve: 0%-100% linear dimming, smooth and flicker-free.
-
Beam Angle: 2-5°
-
Lens Diameter: 200mm
-
Control Channels: 16 or 20 channels
-
Control Modes: DMX512, Auto, Master/Slave, RDM. Supports address code setting via console.
-
Prism System: 16-facet prism and (8+16+24) faceted prism (configurable per customer request).
-
Display: LCD screen, rotatable 180° for flexible installation.
-
Pan/Tilt: High-precision three-phase stepper motors for accurate positioning and smooth movement with auto-correction.
-
Pan: 540° rotation, 8/16-bit resolution, fine adjustment.
-
Tilt: 270° rotation, 8/16-bit resolution, fine adjustment.
-
-
Cooling System: Advanced forced-air convection cooling based on thermal flow analysis, rapidly dissipating heat to prolong source life and minimize lumen depreciation. Features a low-noise, high-performance fan.
-
Installation: Upright or inverted.
-
Product Dimensions (L×W×H): 302×382×612mm
-
Net Weight: 24kg
-
Gross Weight: 28kg
-
Ingress Protection Rating: IP65
Craftsmanship & Design:
This high-performance waterproof beam light represents a premium design, delivering massive output and a thick, intense beam column. It meets high standards in optics, construction, and aesthetics, incorporating advanced high-brightness光源, optical technology, and rigorous industrial design to ensure perfect realization of lighting concepts.
