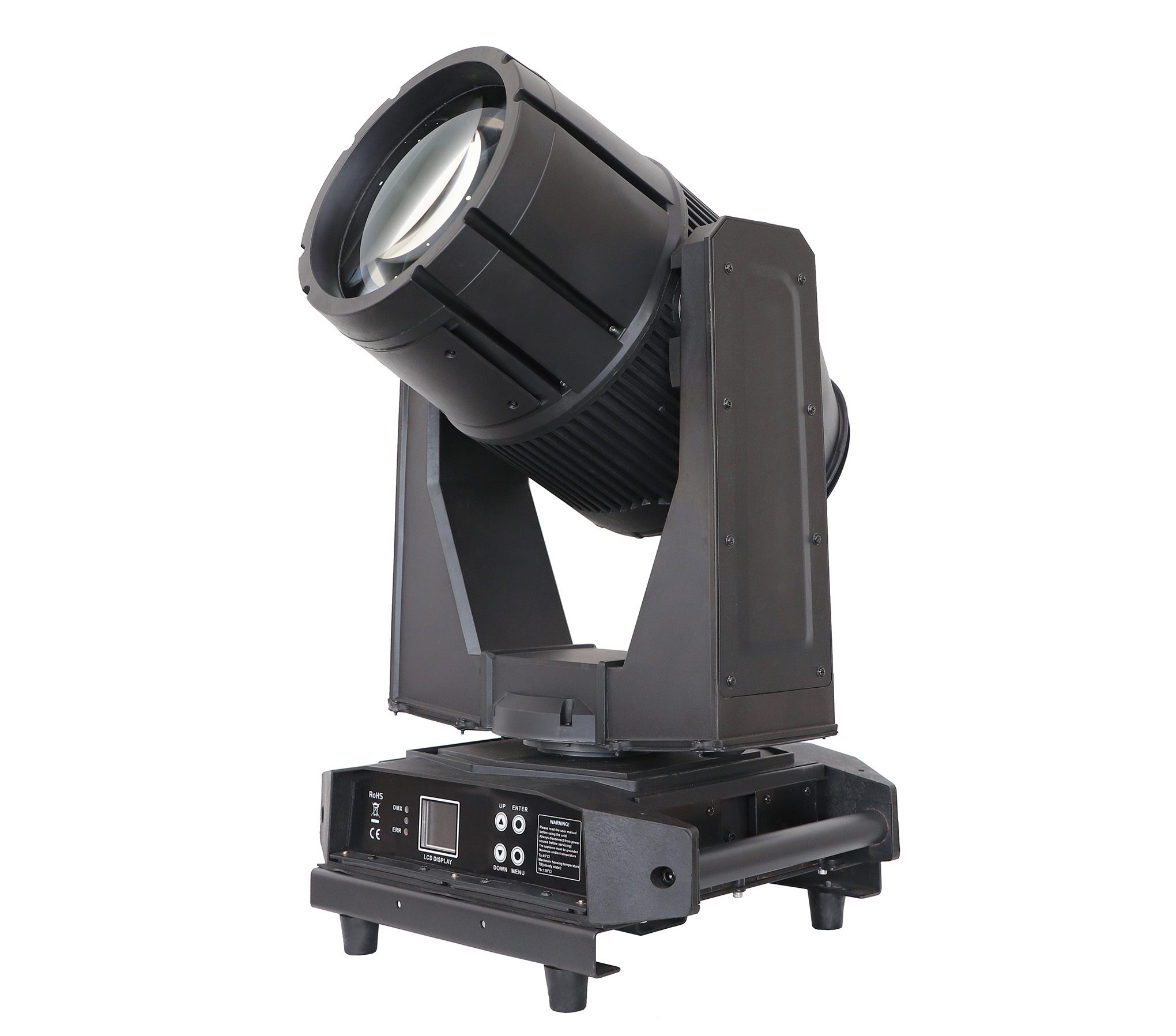

Waterproof Large-Aperture Beam Light (BEAM-550F)

Product Overview

• Input Voltage: AC 90-240V, 50/60Hz

• Rated Power: 800W

• Light Source: 550W (OSRAM)

• Source Lifespan: 2,000 hours

• Color Temperature: 8000K

• Color System: Color Wheel: 13 Colors + Rainbow Effect + Frost Function

• Gobo System: Gobo Wheel: 17 Fixed Gobos + 1 Open

• Focus System: Motorized Focus

• Frost: Frost function for soft beam effects

• Strobe: Dual independent strobe effects, 0.5-20 Hz, adjustable speed

• Motors: High-precision three-phase stepper motors for X/Y axes, ensuring high-speed stability and accurate positioning.

• Dimming Curve: 0%-100% linear dimming, smooth and flicker-free.

• Beam Angle: 2-5°

• Lens Diameter: 200mm

• Control Channels: 16 or 20 channels

• Control Modes: DMX512, Auto, Master/Slave, RDM. Supports address code setting via console.

• Prism System: 16-facet prism and (8+16+24) faceted prism (configurable per customer request).

• Display: LCD screen, rotatable 180° for flexible installation.

• Pan/Tilt: High-precision three-phase stepper motors for accurate positioning and smooth movement with auto-correction.

  • Pan: 540° rotation, 8/16-bit resolution, fine adjustment.

  • Tilt: 270° rotation, 8/16-bit resolution, fine adjustment.

• Cooling System: Advanced forced-air convection cooling based on thermal flow analysis, rapidly dissipating heat to prolong source life and minimize lumen depreciation. Features a low-noise, high-performance fan.

• Installation: Upright or inverted.

• Product Dimensions (L×W×H): 302×382×612mm

• Net Weight: 24kg

• Gross Weight: 28kg

• Ingress Protection Rating: IP65

Craftsmanship & Design:
This high-performance waterproof beam light represents a premium design, delivering massive output and a thick, intense beam column. It meets high standards in optics, construction, and aesthetics, incorporating advanced high-brightness光源, optical technology, and rigorous industrial design to ensure perfect realization of lighting concepts.
