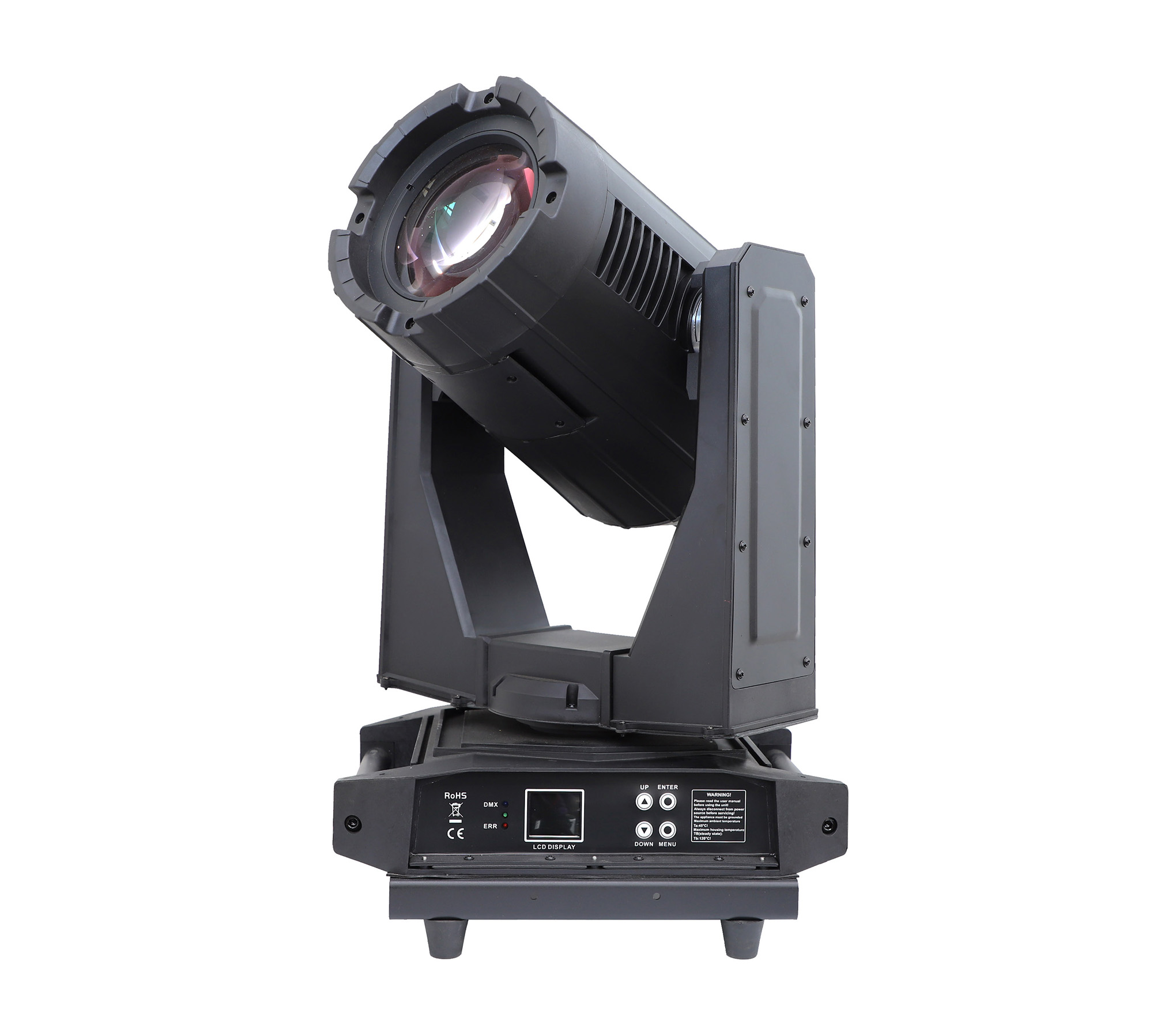

Waterproof Beam Light (BEAM-420)

Product Overview

• Input Voltage: AC 90-240V, 50/60Hz

• Rated Power: 600W

• Light Source: 420W (OSRAM)

• Source Lifespan: 2,000 hours

• Color Temperature: 8000K

• Color System: Color Wheel: 14 colors + 1 open

• Gobo System: Gobo Wheel: 17 fixed gobos + 1 open

• Focus System: Motorized Focus

• Frost: Frost function for soft beam effects

• Strobe: Dual independent strobe effects, 0.5-20 Hz, adjustable speed

• Motors: Three-phase stepper motors for pan/tilt axes, ensuring high-speed stability and accurate positioning.

• Dimming Curve: 0%-100% linear dimming, smooth and flicker-free.

• Beam Angle: 2-5°

• Lens Diameter: 168mm

• Control Channels: 16 or 20 channels

• Control Modes: DMX512, Auto, Master/Slave, RDM. Supports remote address code setting via console.

• Prism System: 16-facet prism and (8+16+24) faceted prism (configurable per customer request).

• Display: LCD screen, rotatable 180° for flexible installation.

• Pan/Tilt: High-precision three-phase stepper motors for accurate positioning and smooth movement with auto-correction.

  • Pan: 540° rotation, 8/16-bit resolution, fine adjustment.

  • Tilt: 270° rotation, 8/16-bit resolution, fine adjustment.

• Cooling System: Advanced forced-air convection cooling based on thermal flow analysis, rapidly dissipating heat to prolong source life and minimize lumen depreciation. Features a low-noise, high-performance fan.

• Installation: Upright or inverted.

• Fixture Dimensions (L×W×H): 393×317×670mm

• Net Weight: 24kg

• Package Dimensions (L×W×H): 41×49×77cm

• Gross Weight: 28kg

• Ingress Protection (IP) Rating: IP65

Key Features: Premium design delivering powerful output and a thick, intense beam. This IP65 rated beam light meets high standards in optical performance, structural integrity, and aesthetics, incorporating advanced light source technology, precise optics, and robust industrial design to ensure perfect realization of lighting concepts.
