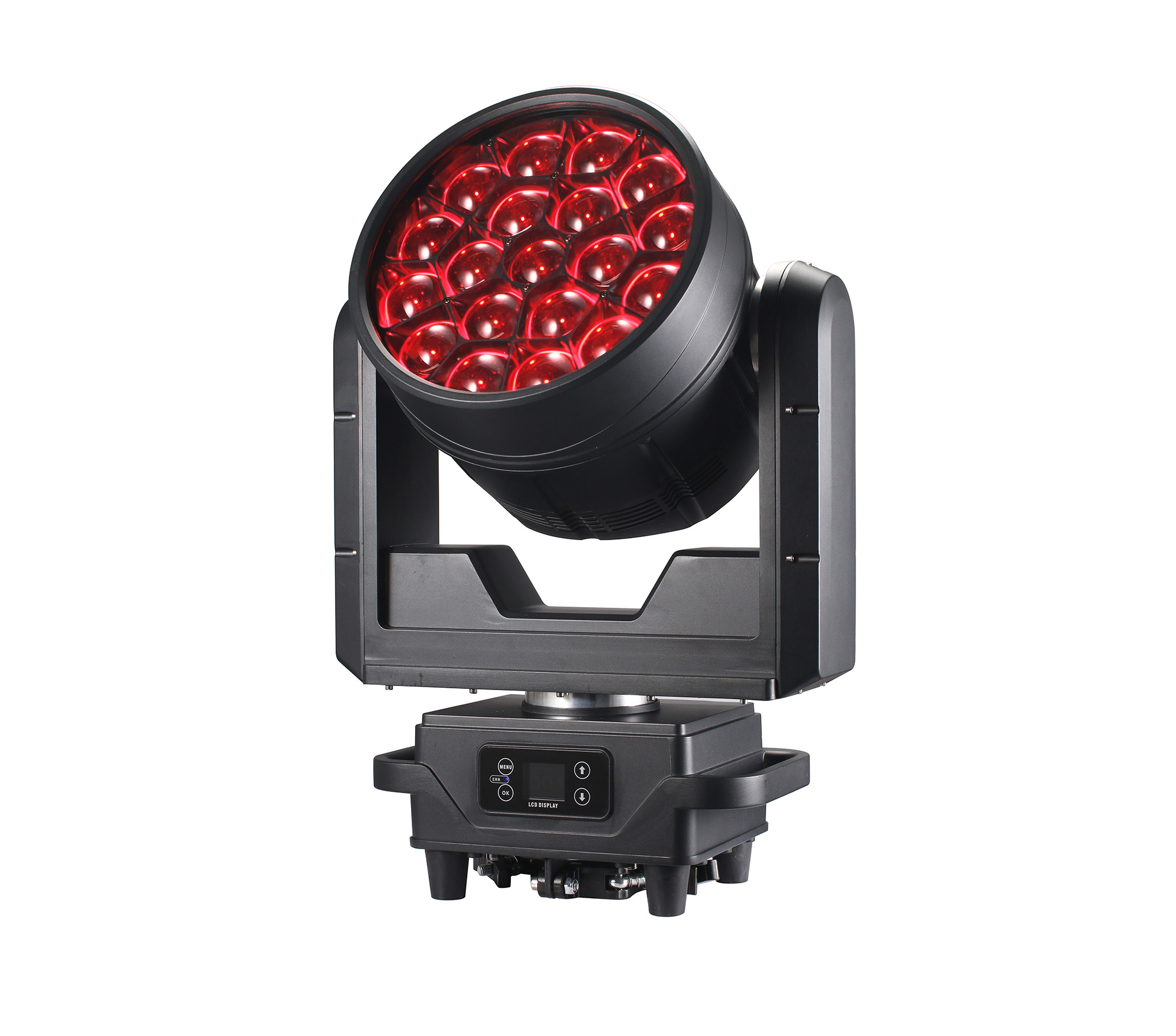

Waterproof 19×40W Moving Head Cluster Light [LY-SL1940]

Product Overview

• Input Voltage: AC 100-240V, 50/60Hz

• Rated Power: 800W

• Light Source: 19 × 40W RGBW Quad-Chip LEDs

• Beam Angle: 4-45°

• Control Channels: 23 / 25 / 101 Channels

• Control Modes: Master/Slave, Standalone, Sound-Active

• Signal Connection: Standard 3-pin XLR input & output

• Lens Rotation: 360°

• Pan: 540°

• Tilt: 270°

Key Features:

1. Features CTO-free wireless color mixing, wash, beam, and strobe effects (including vortex and kaleidoscope patterns).

2. Front lens assembly allows for variable-direction stepless rotation. Equipped with high-precision glass optical lenses and electronic focusing for ultra-smooth, fine focal adjustment. Supports individual pixel control of each LED.

3. Integrated motherboard design protects against issues caused by fog fluid and confetti. Includes built-in rich effects and RDM functionality for remote addressing via console.

4. Display: Features an LCD touch screen with button control for user-friendly operation. Supports switching between Chinese and English display interfaces. The screen intelligently rotates 180° for inverted installation.

Housing Material: Aluminum Plate + Plastic Shell + Tempered Glass
Product Dimensions: 419.91 × 302.15 × 575.82mm
Net Weight: 22kg
Protection Rating: IP65
