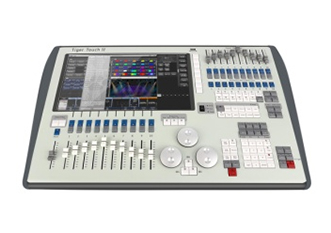

Touch Tiger Lighting Console 【TT-II】

Product Overview

• Operating System: Powerful Titan OS (trinity system versions 9.1, 10.1, and 11.1)

• Processing Hardware: Intel Core i5 dual-core processor, 120GB SSD, 4GB RAM

• Screen: 1 × built-in 15.6″ capacitive touchscreen with superior brightness and viewing angles. Supports expansion with one additional touch-enabled HD display.

• DMX & Interfaces: 8 standard DMX output ports and MIDI interface, with 4,096 DMX channels (expandable to 64 DMX outputs and 32,768 DMX channels).

• Power: Built-in UPS provides approximately 30 minutes of operation during a power outage (customizable duration) to prevent system damage or data loss. Can be customized for 1-5 hours of operation without external power, supporting unique power-on functionality.

• Audio: Built-in independent, isolated Hi-Fi grade sound card to eliminate interference and poor audio quality from integrated motherboard audio.

• Effects: Built-in graphic generator with synchronized built-in effects.

• Show Control: Built-in player with timecode for convenient lighting show programming.

• Macro Controls: 10 macro buttons, programmable for any function.

• Playback: 20 playback faders, supporting 1,000 virtual playbacks.

• Interface: Powerful attribute control window with CMY/RGB color picker system.

• Features: Supports graffiti-style handwriting for naming; supports Art-Net network functionality.

• Languages: Supports Chinese menu display and includes multiple built-in languages.

• Library & Software: Includes thousands of built-in fixture profiles and library editing software for on-console editing.

• Visualization: Built-in Visualiser stage simulation software with video support for pre-programming.

• Synchronization: Supports MIDI timecode for audio-visual synchronization; can also play music internally and send timecode to control lighting program playback.

• Weight: Net Weight 14 kg, Carton Packaging 18 kg, Flight Case Packaging 29 kg

• Carton Packaging Dimensions: 73.5 × 63.5 × 23.5 cm (L×W×H)

• Flight Case Packaging Dimensions: 73.5 × 55.5 × 31.5 cm (L×W×H)
