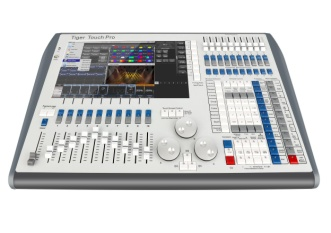

Touch Tiger Lighting Console 【TT-Pro】

Product Overview

• Operating System: Powerful Titan OS (versions 9.1, 10.1, and 11.3 supported)

• Processing Hardware: Intel Core i5 CPU, 4GB RAM, 120GB Kingston high-speed SSD

• Screen: 1 × built-in 15.6″ high-resolution industrial-grade touchscreen; supports networking to computer devices for controlling various 3D lighting visualization software.

• Power: Built-in UPS, providing 1 hour of normal operation without AC power connection.

• Audio: Built-in independent, isolated Hi-Fi grade sound card to eliminate interference and poor audio quality from integrated motherboard audio.

• Languages: Supports Chinese menu display and includes multiple built-in languages.

• Networking & DMX: Supports Art-Net, expandable up to 12 DMX universes (6,144 channels).

• Macro Controls: 10 macro buttons for faster console operation.

• Playback: 20 playback faders, supporting over 1,000 cue playbacks.

• Interface: Powerful attribute control window with CMY/RGB color picker system.

• Effects: Easy-to-use graphic generator with categorized built-in effects.

• Media Server Integration: Supports CIPT protocol, allowing direct viewing of media clip thumbnails from media servers on the console.

• Wireless Control: Supports Wi-Fi connection for wireless lighting control and remote control via mobile devices (iPhone, iPod Touch).

• Library & Software: Includes thousands of built-in fixture libraries and library editing software for on-console editing.

• Visualization: Built-in Visualiser wireframe lighting visualization software for pre-programming.

• Synchronization: Supports MIDI timecode for audio-visual synchronization; can also play music internally and send timecode to control lighting program playback.

• Weight: Net Weight 14 kg, Gross Weight 30 kg

• Product Packaging: 68 × 43 × 15 cm (L×W×H)

• Flight Case Packaging: 78 × 53 × 32 cm (L×W×H)
