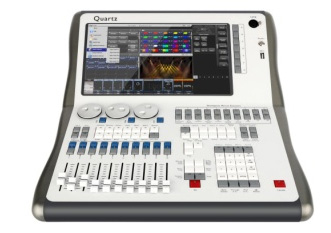

Touch Tiger Junior Lighting Console 【QUARTZ】

Product Overview

• Operating System: 14.1″ screen, with five Titan OS versions (9.1, 10.0, 10.1, 11.0, 11.1) for flexible switching.

• Processing Hardware: Intel Core i5 processor, 120GB SSD, 4GB RAM.

• Audio: Built-in independent, isolated Hi-Fi grade sound card to eliminate interference and poor audio quality from integrated motherboard audio.

• Power: Built-in UPS.

• DMX: 4 built-in 512-DMX outputs, 2,048 channels; supports TitanNet and Art-Net for expansion up to 64 DMX outputs.

• Playback: 10 mechanical, paging playback faders.

• Macro Controls: 20 user-definable macro buttons.

• Screen & Expansion: 1 built-in 14.1″ high-brightness touchscreen; expandable with 1 Titan Fader Wing (providing an additional 20 playback faders and 30 user-definable macros, USB-powered).

• Audio Output: Headphone output supported.

• Networking & Compatibility: 1 Gigabit network port supporting Art-Net, Titan-Net, and Streaming CAN protocols. Show file compatible with other TITAN system consoles.

• Carton Packaging Dimensions & Weight: 59 × 54 × 29 cm (L×W×H); 13.3 kg

• Flight Case Packaging Dimensions & Weight: 59 × 54 × 35.5 cm (L×W×H); 22.8 kg
