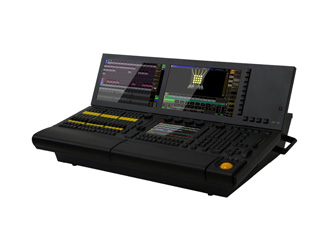

MA Professional Lighting Console 【M3L】

Product Overview

• Operating System: Linux OS

• Screens: 3 × motorized tilting 15.4″ touchscreens, 1 × fixed 9″ touchscreen

• Processing Hardware: Industrial-grade motherboard with a powerful i5 CPU, 8GB RAM, 120GB SSD

• Timecode: 1 × LTC timecode trigger port

• Playback Controls: 30 × 60mm touch-sensitive manual playback faders, 80 × executor buttons

• Playback & Grand Master: 2 × 100mm motorized A/B crossfaders, 1 × motorized Grand Master fader, 1 × backlit wheel

• USB: 1 × 18W fast-charge USB port (for mobile devices), 5 × standard USB ports, 1 × backup USB port

• Power: Built-in high-power UPS (supports startup without mains power); wide-voltage industrial power supply (100V-240V, 50/60Hz)

• DMX: 6 × DMX output ports, 1 × combo DMX input port (configurable as output). Supports up to 65,536 channels when connected to NPU.

• Navigation: 1 × high-precision imported trackball (controls X/Y axes)

• Encoders: 7 × imported industrial-grade encoders (with push function)

• Network: 2 × Gigabit Ethernet ports (supporting sACN, Art-Net, etc.)

• Other I/O: 2 × work light ports; MIDI In/Out ports

• Internal Features: 2 × built-in drawers; 1 × yellow-backlit mechanical keyboard (adjustable brightness)

• RDM: Full RDM support

• Gross Weight: 93 kg

• Flight Case Dimensions (L×W×H): 140 × 75 × 32 cm
