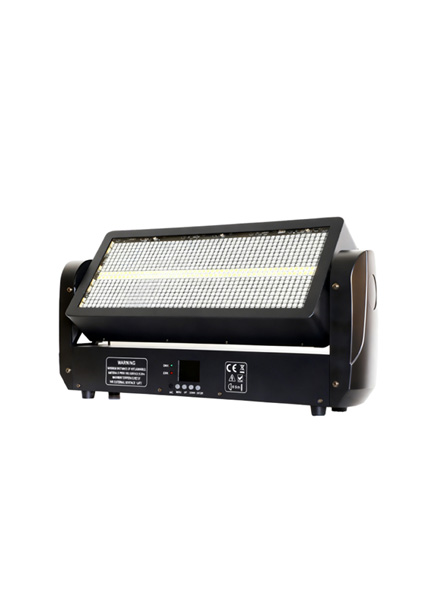

LED Square Strobe Moving Head [SPM-864]

Product Overview

• Input Voltage: AC100V-240V, 50/60Hz

• Rated Power: 400W

• Light Source: 864 pcs RGB LEDs + 96 pcs White LEDs

• Lamp Life: 50,000 hours

Effects Configuration:

• Each RGB segment is individually controllable for creating various patterns.

• Full-range dimming with 65536-step precision; high-brightness output.

• Fast strobe: 1-25 Hz.

• Color macros, color fade effects, multiple strobe and graphic effects.

• Dimming: 0-100% linear.

Movement Parameters:

• Vertical Tilt: 220° (fine-tuning precision: 0.0037°)

Control:

• Channels: 5/12/50 control channel modes

• Protocol: DMX512 protocol

• Display: OLED screen with selectable Chinese/English language, 180° invertible display; button operation.

Electronic Features: Constant-current drive, temperature sensing, DMX channel level monitoring, fixture information query, intelligent fan speed control.

Physical Specifications:

• Dimensions: 494×88×246mm

• Net Weight: 4.8kg

• IP Rating: IP20

• Operating Temperature: -20℃ ~ 40℃
