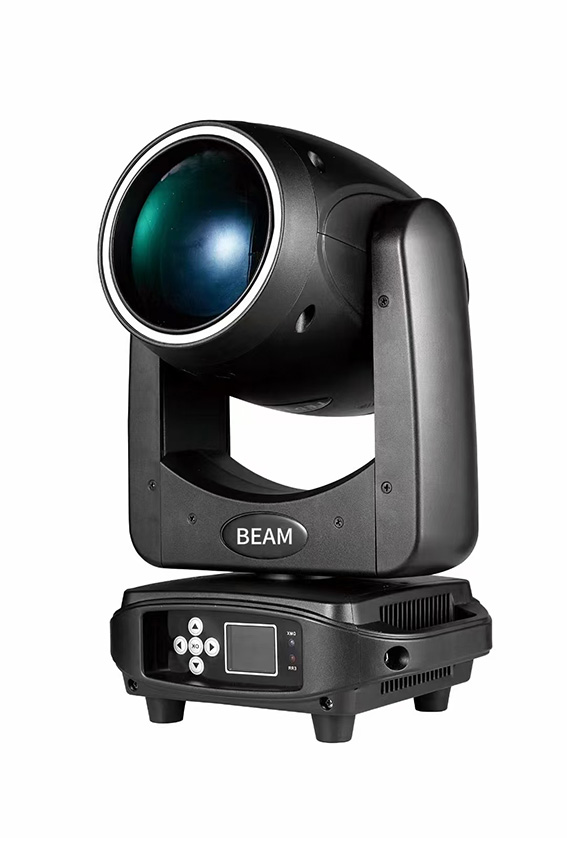

LED 200W Beam Moving Head with Iris [BEAM-8000]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 300W
Light Source: 200W White LED
Lamp Life: 20,000 hours
Color Temperature: 9000K
LED Bezel Ring: 36 pcs high-brightness RGBW LEDs; features multiple built-in chaser programs and can run in Master/Slave mode independently from a console.
Beam Angle: Zoom: 0° ~ 5°; Large 128mm aperture output; Beam angle: 0° ~ 2.2°

Color System: Color wheel with macro function: 12 colors + white; full/half/linear color mixing; variable-speed bi-directional rainbow effect.
Gobo System: 1 fixed gobo wheel: 13 patterns + open; bi-directional variable-speed rotation, variable-speed shake effect, and bi-directional variable-speed flow effect; equipped with efficient Hall effect sensor.
Prism: 1 (8-facet prism), can be overlaid with bi-directional variable-speed rotation and indexed variable-speed shake effect.
Focus: DMX linear focus with auto-focus function.
Frost: 1 (frost filter).
Electronic Strobe: 0.3 ~ 25 flashes per second; optional synchronized/asynchronous random strobe.
Dimming: Electronic dimming 0 ~ 100% linear; features gamma-corrected dimming with adjustable frequency from 1.2K to 25K; stable, flicker-free dimming via macro commands; utilizes stable constant-current drive and power supply, suitable for video recording.

Movement Parameters:

• Rotation: Pan 540° (16-bit precision scanning), Tilt 270° (16-bit precision scanning).

• Drive: High-speed, silent stepper motors for smooth and fast XY-axis movement.

• Features: Auto-reset after erroneous movement; adjustable Pan/Tilt speed.

Control:

• Channels: 22 control channels

• Protocol: Standard DMX512 protocol, RDM function, Sound-Active, multiple built-in auto programs.

• Display: 1.77-inch LCD screen with bilingual (Chinese/English) menu; displays sensor fault status and temperature.

Cooling System: Lightweight aluminum heat sink with intelligent fan monitoring.
Physical Specifications:

• Dimensions: 258×190×412mm

• Net Weight: 7.4kg

• IP Rating: IP20
