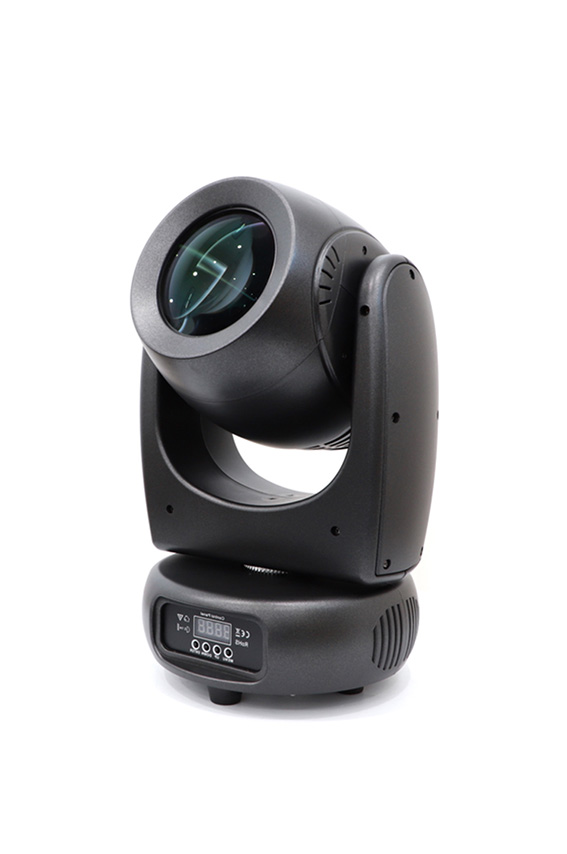

LED 150W Beam Moving Head [BEAM-7800]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 200W
Light Source: 150W LED
Lamp Life: 60,000 hours, energy-saving and environmentally friendly
Color Rendering Index (CRI): Ra ≥ 80
Color Temperature: 7800K
Optics & Beam Angle: High-precision optical glass lens; produces a thick, solid beam with a natural beam angle of 3°

Color System: One color wheel, each consisting of 12 dichroic colors + white; features half-color effect, rainbow effect; colors are indexable with bi-directional rotation.
Gobo System: 1 fixed gobo wheel with 13 patterns + open; capable of rotation and flow effects; gobo wheel is indexable.

Effects Configuration:

• Standard honeycomb prism, rotatable with adjustable speed.

• Independent dimming system, 0-100% smooth linear LED dimming.

• Electronic linear focus.

• High-speed LED strobe effect up to 25 flashes per second.

Movement Parameters:

• Pan: 540° (16-bit precision scanning)

• Tilt: 270° (16-bit precision scanning)

• Adjustable speed, with auto-search and reset function.

Control:

• Channels: 10/13 control channel modes

• Protocol: Standard DMX512 protocol, with built-in auto programs and sound-active mode.

• Menu Display: Digital display screen.

Electronic Features: Intelligent fan control, electronic temperature sensing.

Physical Specifications:

• Dimensions: 270×200×360mm

• Net Weight: 6.25kg

• IP Rating: IP20
