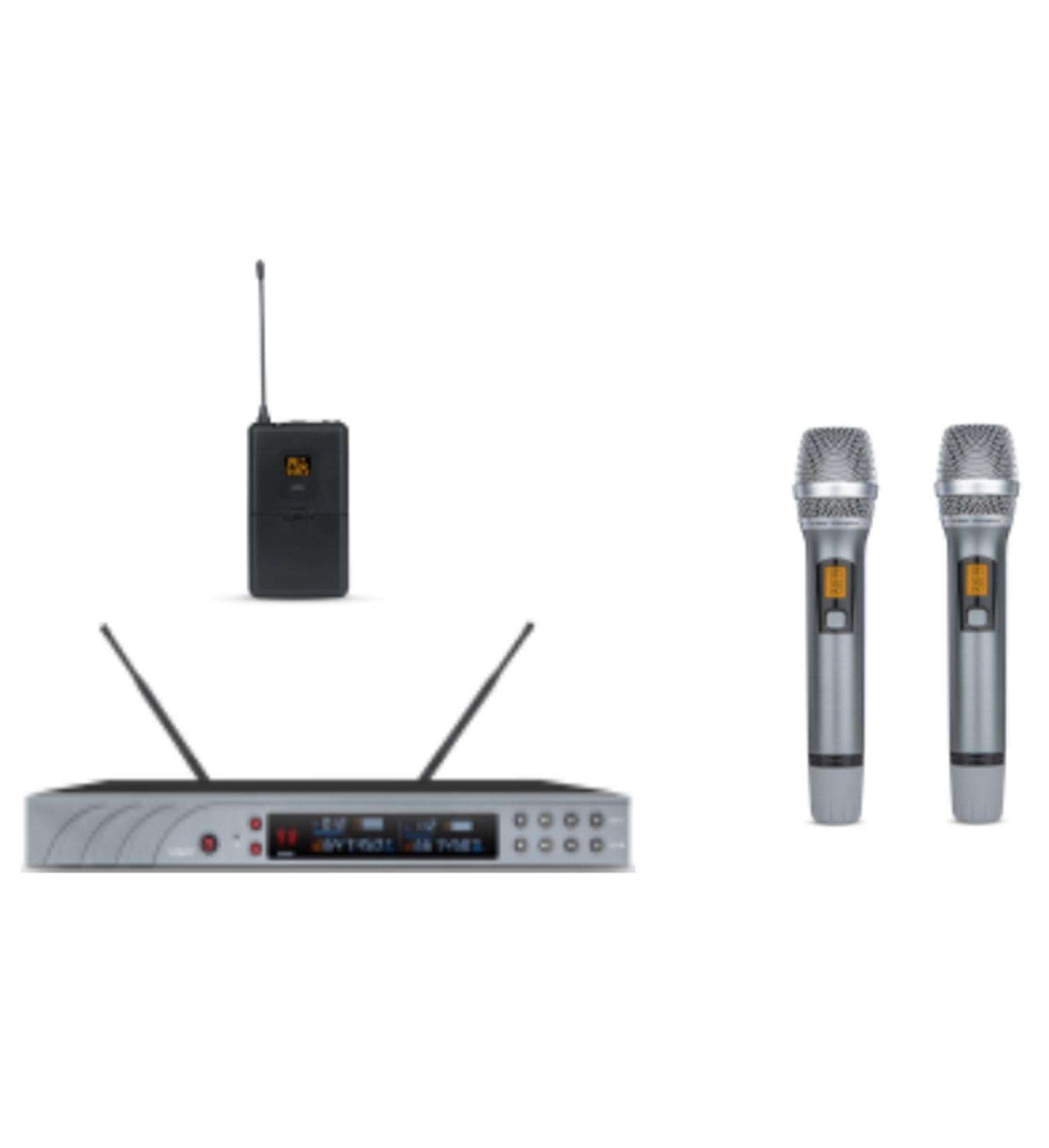

Dual Handheld Wireless Microphones [U-860]

Receiver Specifications

• Operating Range: 120 meters

• Frequency Range: UHF 635–685 MHz

• Number of Channels: 2 (Dual)

• Modulation: FM

• Synthesizer: PLL Phase-Locked Frequency Synthesis

• Sensitivity: >60dB S/N at 25KHz deviation, 6dBμV input

• RF Bandwidth: 30 MHz

• Maximum Deviation: ±45 KHz

• Overall S/N Ratio: >105 dB

• Overall T.H.D.: <0.7% @ 1KHz

• Overall Frequency Response: 45 Hz – 18 KHz (±3dB)

• Power Supply: DC 12V–16V, 10W

• Output Connectors: XLR (Balanced) & 1/4″ Jack (Unbalanced)

Handheld Transmitter Specifications

• Frequency Range: UHF 635–685 MHz

• Synthesizer: PLL Phase-Locked Frequency Synthesis

• Spurious Emission: < -65 dBm

• Maximum Deviation: ±45 KHz

• Frequency Response: 45 Hz – 18 KHz (±3dB)

• RF Bandwidth: 120 MHz

• Microphone Capsule: Dynamic

• RF Output Power: 10 mW

• Battery: 2 x AA

• Current Consumption: < 100 mA

• Continuous Operation Time: > 10 hours

Bodypack Transmitter Specifications

• Frequency Range: UHF 635–685 MHz

• Synthesizer: PLL Phase-Locked Frequency Synthesis

• Spurious Emission: < -65 dBm

• Maximum Deviation: ±45 KHz

• Frequency Response: 45 Hz – 18 KHz (±3dB)

• RF Bandwidth: 120 MHz

• Microphone Type: Condenser (for Lavalier/Headset)

• RF Output Power: 10 mW

• Battery: 1 x AA

• Current Consumption: < 150 mA

• Input Connector: 4-pin Mini XLR

• Continuous Operation Time: > 8 hours
