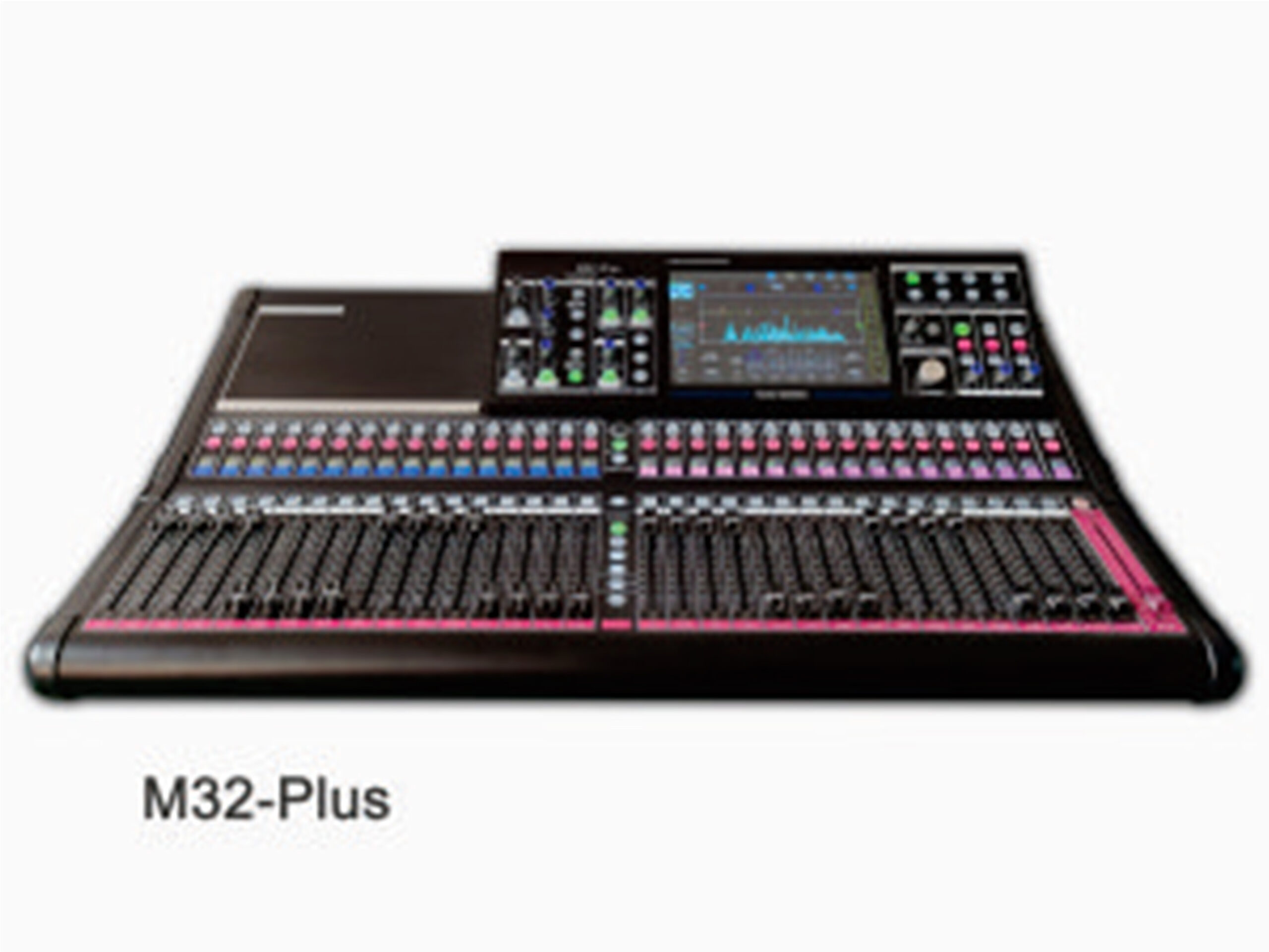

Digital Mixing Console 【M32-Plus】

Product Overview

• Operating System: Developed on a Linux OS foundation. Virus-resistant, ensuring secure and stable operation.

• Processing: 5-core CPU processor with a 1.8GHz clock speed for fast boot-up and high-speed performance.

• Display & Interface: 10.1-inch 1280*800 high-definition touchscreen. Supports Chinese/English interface with easy switching.

• Data Integrity: Automatic parameter save on shutdown, preventing data loss.

• Local I/O:

  • Inputs: 42 Input Channels (38 analog + 4 digital) comprising 32 MIC/Line, 2 Stereo RCA, 1 3.5mm Stereo Headphone Input, and 1 Digital Input group (Audio Interface/MP3/AES Digital In).

  • Outputs: 20 Output Channels (Main L/R, 14 AUX sends, 1 Headphone Monitor output, 1 AES Digital output).

  • Features: Integrated RTA real-time spectrum analyzer; independent channel feedback suppressors; 8 user-definable keys; 8 DCA groups & 8 mute groups; built-in signal generator (white/pink noise, sine wave).

  • Control Surface: 33 x 100mm motorized faders with 33 TFT channel guide displays (supporting Chinese/English text).

• Signal Expansion:

  • Supports simultaneous connection to two 16-in / 8-out stageboxes, enabling I/O expansion (maximum support: 74 inputs, 36 outputs).

  • Supports an optional internal 32×32 Dante card.
