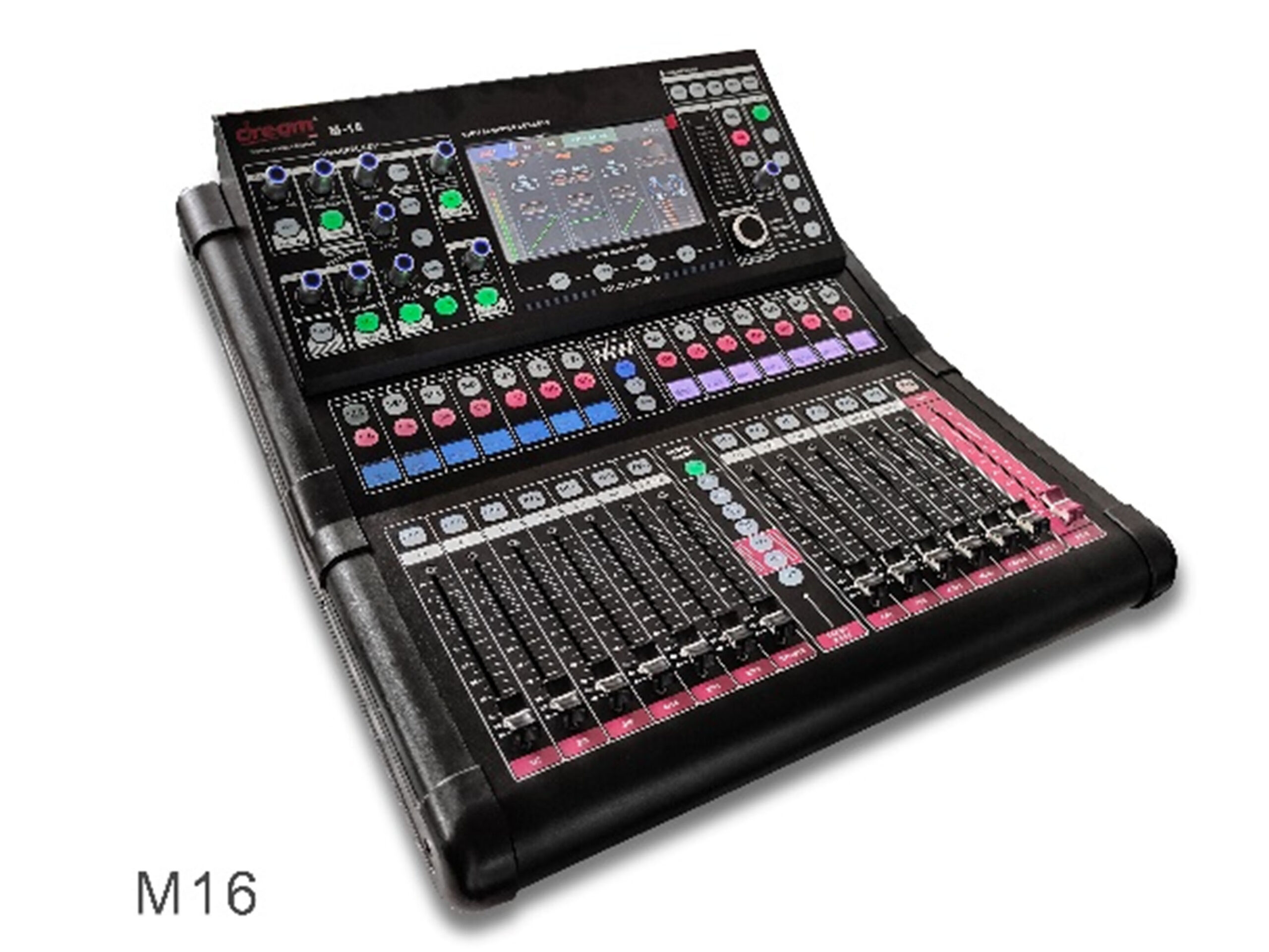

Digital Mixing Console 【M16】

Product Overview

• Display & Interface: Built-in 7-inch high-definition capacitive touchscreen with selectable Chinese/English operating interface.

• Input Channels: 18 Input Channels:

  • 12 MIC/Line Inputs

  • 2 Stereo RCA Inputs

  • 1 Digital Input group (Audio Interface, MP3, AES Digital In/Out)

• Output Channels: 10 Audio Outputs:

  • 8 XLR Outputs

  • 1 Stereo 6.35mm Headphone Monitor Output

  • 1 AES Digital Output

• Advanced Audio Processing:

  • 12 independent, integrated feedback suppressors.

  • Built-in 12-channel AutoMixer functionality.

  • MIC input gain adjustment (smooth digital gain, recallable with scenes).

  • Built-in signal generator (pink noise/sine wave/white noise), assignable to any output(s).

  • Built-in real-time spectrum analyzer (RTA) with editable color display.

• Phantom Power: +48V phantom power (individually switchable per MIC channel).

• Channel Processing: Each channel features built-in compressor/limiter, noise gate, high-pass/low-pass filters, 15-band parametric EQ, and delay.

• Control Surface: 14 x 100mm motorized faders.

• Grouping: 6 DCA groups, 6 mute groups.

• User Interface: 6 user-definable keys. 14 TFT channel guide displays supporting Chinese/English text.

• Playback: Built-in audio interface (for MP3/PC playback).

• Scene Memory: 4 quick-scene recall modes, 100 scene memory slots.

• Effects: 2 independent built-in DSP effects processors.

• Control: FX footswitch interface.
