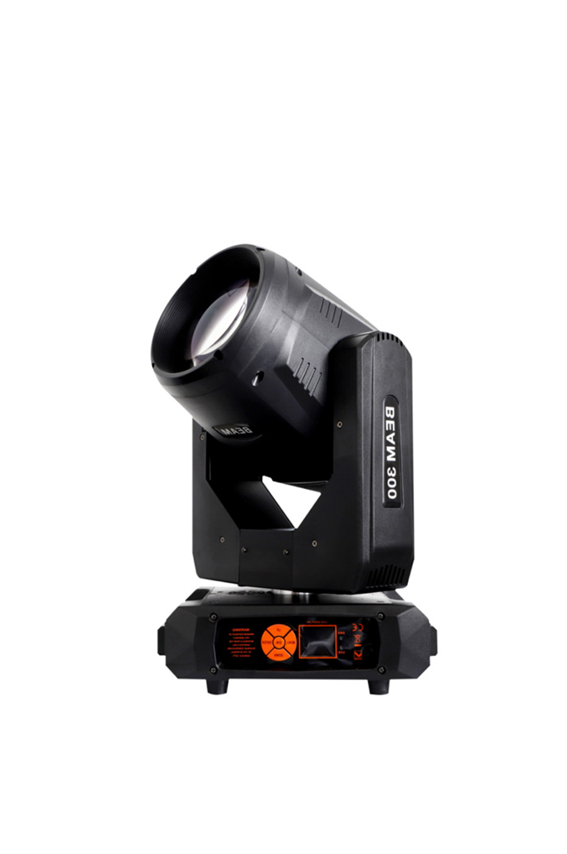

BEAM-310 300W Moving Head Beam Light

Product Overview

• Input Voltage: AC100-240V, 50/60Hz

• Rated Power: 350W

• Light Source: 300W Lamp

• Lamp Life: 2000 hours

• Color Temperature: 8000K

• Optics: A high-definition, high-precision optical system with a large-diameter high-definition front lens.

• Focus & Beam: Linear electronic focusing. Natural beam angle: 3°.

• Color System: 1 color wheel with 14 preset colors + white, featuring half-color effect, bi-directional rotation, and random color mode.

• Pattern System: 1 fixed pattern wheel with 14 static gobos + open; capable of self-rotation, chasing, and shake effects; wheel is indexable.

• Effects:

  • One 16-facet prism, and one combined 8+16+24-facet triple-effect prism, both with bi-directional rotation.

  • One independent frost effect and one color splinter effect, with cut-in/cut-out function.

  • Independent mechanical dimmer, 0-100%.

  • Mechanical strobe, 1-15 flashes per second.

• Moving Head Parameters:

  • Pan Range: 540° (16-bit precision)

  • Tilt Range: 270° (16-bit precision)

  • Adjustable speed. Auto-reset via self-check.

• Control:

  • Channels: 18 channels

  • Protocols: Standard DMX512, Sound-Active, with built-in multi-auto programs.

• Menu Display: LCD screen with selectable Chinese/English language; display can be inverted 180°.

• Electronic Features: Smart fan control with temperature sensor, DMX channel level monitoring, fixture information display via LCD.

• Dimensions: 306 × 254 × 492 mm

• Net Weight: 13 kg

• Protection Rating: IP20
