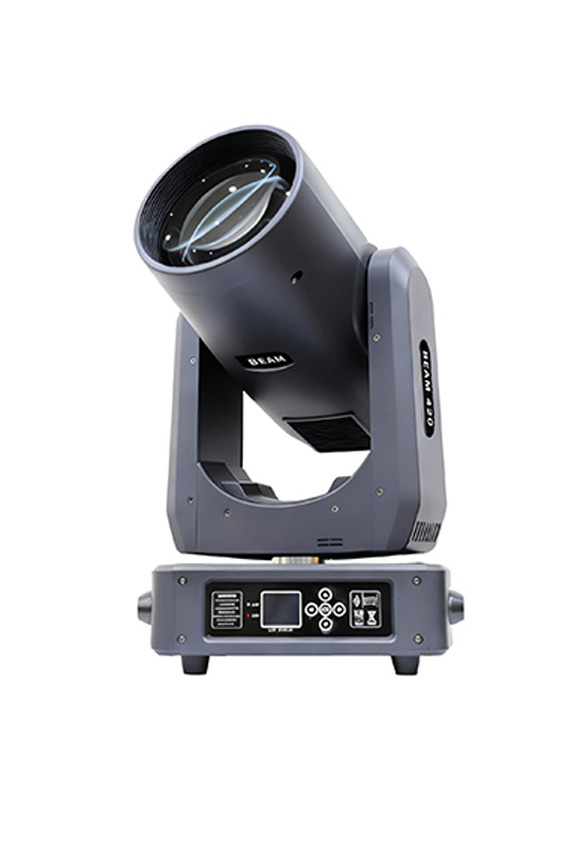

420 Moving Head Beam Light [BEAM-420]

Product Overview

• Input Voltage: AC 100-240V, 50/60Hz

• Power Consumption: 600W

• Light Source: 420W Lamp

• Color Temperature: 8000K

• Lens System: Coated Glass Lens

• Beam Angle: Natural Beam Angle 2.5°

• Color System: 1 color wheel with 14 preset colors + white, half-color capable, bi-directional color wheel rotation, random color mode.

• Gobo System: 1 fixed gobo wheel with 13 fixed patterns + white (including 3 glass patterns). Capable of rotation, flow, and shake effects. Pattern wheel indexable.

• Effects:

  • One 16-facet prism.

  • One 3-facet (8+16+24) prism, bi-directional rotation.

  • One independent frost effect.

  • One 6-color dichroic filter (color burst effect), with snap-in/snap-out capability.

• Dimmer: Independent mechanical dimmer, 0-100%.

• Strobe: Mechanical strobe, speed 1-15 flashes per second.

• Movement:

  • Pan: 540° (16-bit precision scanning).

  • Tilt: 270° (16-bit precision scanning).

  • Adjustable speed with auto reset/search function.

• Control Channels: 18-channel control mode.

• Control Protocol: Standard DMX512, RDM, Master/Slave, Sound-Active.

• Display: LCD menu with selectable Chinese/English language and 180° display inversion.

• Features: Intelligent fan control, electronic temperature sensing, DMX channel level monitoring, fixture information display via LCD.

• Dimensions (L×W×H): 348 × 265 × 578 mm

• Net Weight: 14 kg

• IP Rating: IP20
