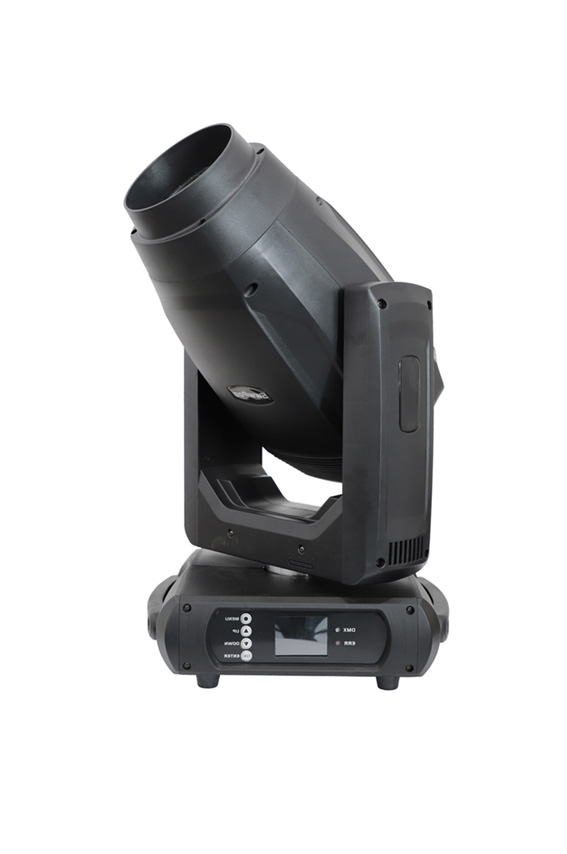

400W LED Triple-effect Beam Moving Head with CMY Mixing & CTO Correction [PM-8200]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 450W
Light Source: 400W LED
Color Temperature: 7500K
Lens System: A set of high-definition, high-precision optical lenses
Beam Angle:

• Beam Zoom: Linear zoom adjustable from 3° to 15°

• Gobo/Color Effect Zoom: Linear zoom adjustable from 5° to 45°

Color System: 1 independent CMY + CTO color mixing system, offering 12 colors + white, with half-color functionality.
Gobo System: 7 glass gobos and 12 fixed patterns + open; capable of rotation, flow, and shake effects; gobo wheel is indexable.

Effects Configuration:

• Two rotating 8-facet or 16-facet prisms (optional), with effect movement and bi-directional rotation.

• One independent frost filter, with fade-in/fade-out capability.

• Electronic dimming, 0-100%.

• Iris: Linear adjustment from 5% to 100%.

• One mechanical strobe, speed adjustable from 1 to 15 flashes per second.

Movement Parameters:

• Pan: 540° (16-bit precision scanning)

• Tilt: 270° (16-bit precision scanning)

• Adjustable speed, with auto-search and reset function.

Control:

• Channels: 22 control channels

• Protocol: Standard DMX512 protocol, RDM function, Master/Slave, Sound-Active.

• Menu Display: Dual control via buttons and touch menu; LCD dot-matrix touch display with four tactile switches; display can be inverted 180°.

Electronic Features: Intelligent fan control, DMX channel level monitoring, fixture information query via LED display.

Safety & Protection: Features over-current, over-voltage, and over-temperature protection. Firmware can be easily updated via DMX signal. Efficient heat pipe cooling system ensures optimal heat dissipation for the LED chip.

Physical Specifications:

• Dimensions: 365×291×661mm

• Net Weight: 21.5kg

• IP Rating: IP20
