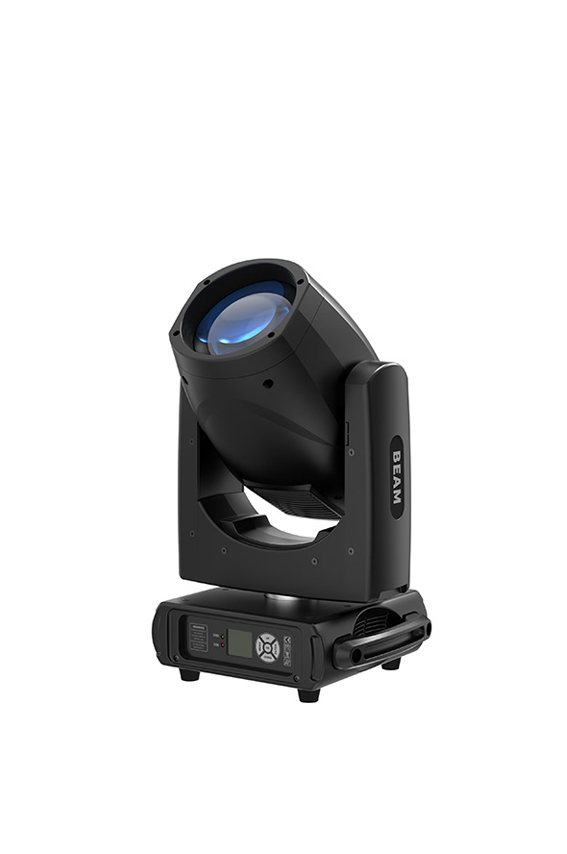

250W Beam Moving Head [BEAM-250]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 300W
Light Source: 250W Lamp
Color Temperature: 7000K
Lens: Coated lens glass, Ø140mm
Beam Angle: Natural beam angle 2.5°

Color System: 1 color wheel with 14 quick-select colors + white, half-color capability, bi-directional rotation, random color mode.
Gobo System: 1 fixed gobo wheel with 13 patterns + open, capable of rotation, flow, and shake effects; gobo wheel indexable.

Effects Configuration:

• One 16-facet prism, one 8+16+24 triple-facet prism, both bi-directional rotation.

• One independent frost / color effect filter, with fade-in/fade-out capability.

• Independent mechanical dimming, 0-100%.

• One mechanical strobe, speed 1-15 flashes per second.

Movement Parameters:

• Pan: 540° (16-bit precision)

• Tilt: 270° (16-bit precision)

• Adjustable speed, with auto-reset/search function.

Control:

• Channels: 18 control channels

• Protocol: Standard DMX512 protocol, RDM function, Master/Slave, Sound Active

• Menu Display: LCD display with selectable Chinese/English language, 180° invertible display.

Electronic Features: Intelligent fan control, electronic temperature sensing, DMX channel level monitoring, fixture information query via LCD.

Physical Specifications:

• Dimensions: 310×253×485mm

• Net Weight: 13kg

• IP Rating: IP20
