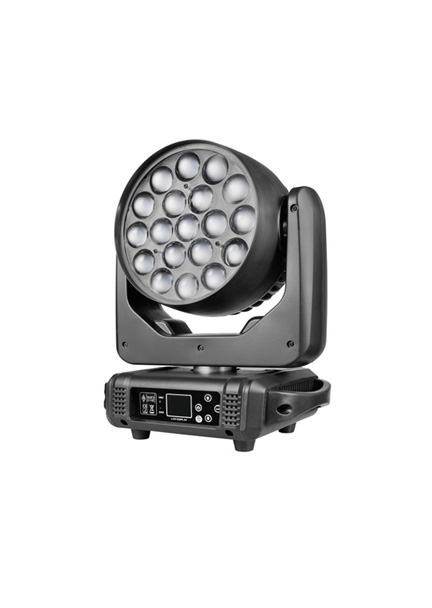

19x15W Moving Head Zoom Wash [SPM-1915]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 360W
Light Source: 19×15W RGBW Quad-chip LED
Lamp Life: 50,000 hours

• Optics: High-efficiency front acrylic lens set with imported high-temperature resistant light guide rods, ensuring optimal light source utilization.

• Zoom System: Linear motor-driven zoom system with a range of 8° to 60°.

Color System: Individual pixel control for each LED chip. Features RGBW stepless color mixing, producing uniform light spots with pure,细腻 (subtle), and饱满 (vibrant) colors.
Effects Configuration: Multiple built-in color mixing effects: pixel effects, wash, strobe, zoom, and beam effects.

• 0-100% linear LED dimming.

• High-speed LED strobe effect (1-25 flashes per second), adjustable speed.

Movement Parameters:

• Pan: 540° (8-bit / 16-bit precision scanning)

• Tilt: 270° (8-bit / 16-bit precision scanning)

• Adjustable speed, with auto-search, error correction, and reset function.

Control:

• Channels: 16/24 control channel modes

• Protocol: Standard DMX512 protocol, Sound-Active, Master/Slave, with multiple built-in auto programs.

• Menu Display: LCD display with four tactile switches; display can be inverted 180°, and language can be switched between Chinese and English.

Electronic Features: Intelligent fan control, electronic temperature sensing, input signal isolation protection for stable and interference-free signal transmission, fixture information query via LCD.

Physical Specifications:

• Dimensions: 317.25×221.44×381.39mm

• Net Weight: 7kg

• IP Rating: IP20

• Operating Temperature: -20℃ to 40℃
