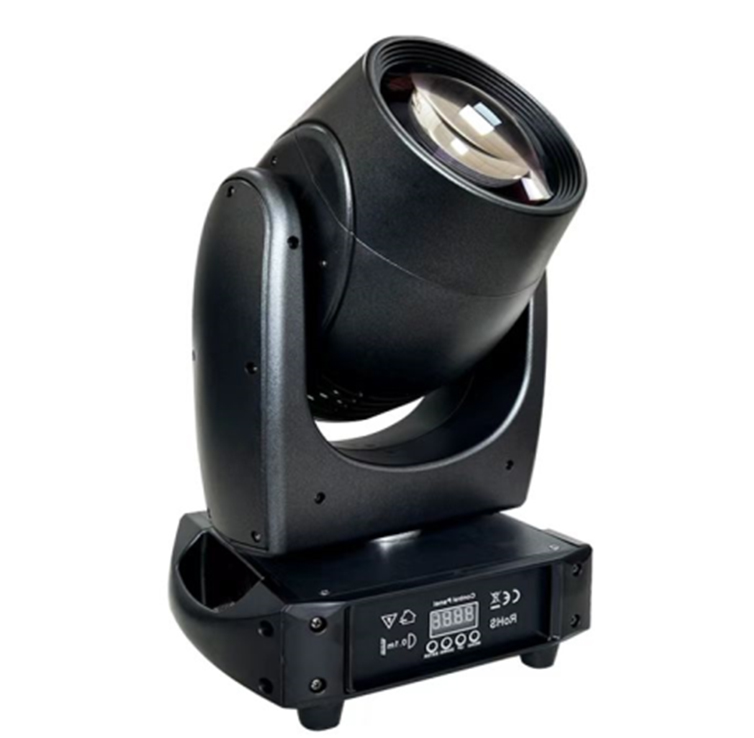

180W LED Beam Moving Head (120mm Lens) [CY-003]

Product Overview

Electrical Specifications:

• Rated Voltage: AC100-240V, 50/60Hz

• Rated Power: 180W

• LED Source: 120W White High-Power LED Chip

Optics & Thermal Management:

• Cooling System: Convective heat transfer, forced air cooling, intelligent temperature control protection

• Lens: High-precision optical lens assembly

• Beam Angle: 3°

Control & Effects:

• Dimming: 0~100% linear dimming

• Strobe: 0–20 flashes per second

• Operating Modes: DMX512 signal / Master-Slave / Standalone / Sound-Active

• Control Protocol: Standard DMX512, 10/13 channels selectable

• Display Panel: 0.39-inch 4-digit LED display + 4 control buttons

Movement System (Pan/Tilt):

• Pan/Tilt Range/Speed: 540° (pan) / 270° (tilt), adjustable speed

• Resolution: 8/16 Bit

• Positioning: Electronic auto-positioning

Effects System:

• Color Wheel: 12 colors + White, with rainbow effect

• Gobo Wheel: 13 patterns + White, with gobo shake effect

• Prism: Honeycomb prism, rotatable, speed adjustable

• Focus: Linear focus adjustment

Weight & Packaging:

• Fixture Net Weight: 6.2kg

• Unit Gross Weight: 7.3kg

• Carton Gross Weight: 15.5kg

• Inner Box Dimensions: 33×32×46cm

• Outer Carton Dimensions: 67×35×48cm

• Quantity per Carton: 2 units
