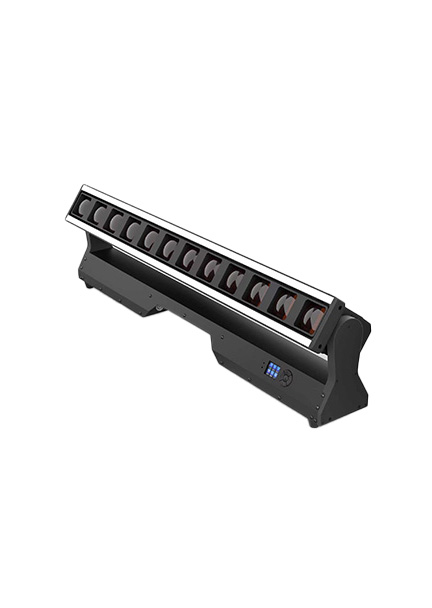

12x40W Rattlesnake Swing Matrix Light [SPM-1240A]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 600W
Main LEDs: 12×40W (5060 type)
Auxiliary LEDs: 144×0.5W RGB LEDs
Main Colors: Red, Green, Blue, White
Display Screen: 1.77-inch color screen with menu and buttons, supporting Chinese/English.
Focus System: Segmented and individual pixel control.
Beam Angle: 2.8° – 31°
Field Angle: 5° – 45°
Strobe: 1 – 25 flashes per second

Dimming: Electronic dimming 0 ~ 100% linear; features gamma-corrected dimming with adjustable frequency from 1.2K to 25K; stable, flicker-free dimming via macro commands; utilizes stable constant-current drive and power supply, suitable for video recording.

Movement Parameters:

• Tilt: 220° vertical movement (16-bit precision scanning).

• Drive: Y-axis uses a high-speed, silent 3-phase 60-step stepper motor for fast and smooth operation.

• Features: Auto-reset after erroneous movement; adjustable Tilt speed; Tilt invert function.

• Positioning: High-precision optical/magnetic encoder positioning.

Control:

• Signal: DMX512, Master/Slave, Sound-Active, Auto-run programs.

• Channels: 27/62 channel modes.

• Power Connection: Power In/Out. Max linkable units: 2 @ 230V, 1 @ 120V.

• Signal Connection: DMX512 In/Out (3-pin). Max linkable units: 30. Supports Art-Net protocol.

Assembly: Capable of horizontal quick linking/assembly.

Physical Specifications:

• Dimensions: 1070×360×190mm

• Net Weight: 15kg

• Gross Weight: 16kg
