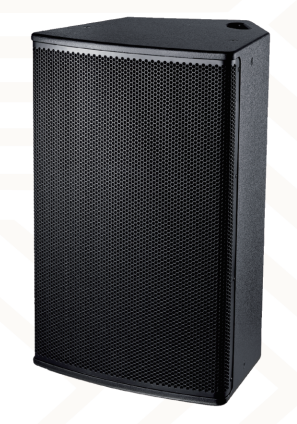

12-inch Versatile Cabinet [FD-12]

Product Overview

Specifications:

• Components: 12″ LF + 1.73″ HF

• Frequency Response (±3dB): 55Hz – 20kHz

• Sensitivity (1W/1m): 98dB

• Nominal Impedance: 8Ω

• Rated Power (AES Standard): 400W / Peak Power: 800W

• Dispersion (H×V): 90° × 70°

• Maximum SPL (1m): 128dB

• Crossover Frequency: 2.1kHz

• Connectors: 2 × Speakon NL4 (+1/-1)

• Rigging: 6 × M8 Suspension Points, 1 × Bottom Cup

• Enclosure Material: High-Strength, Thickened Plywood

• Finish: RAL-Standard, Environmentally Friendly Hard Black Water-Based Paint

• Grille: Black Powder-Coated Steel Mesh with Water-Resistant Acoustic Foam

• Dimensions (W × D × H): 348mm × 386.8mm × 610mm

• Weight: 18.8kg
