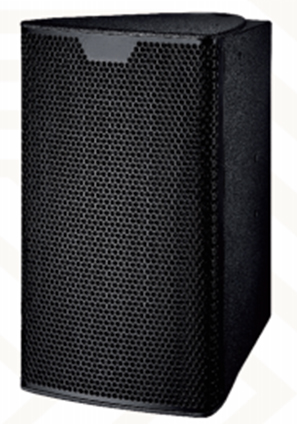

12-inch 3-Way Speaker Cabinet [TD-312]

Product Overview

Specifications:

• Frequency Response: 35 Hz – 20 kHz (-4dB)

• Rated Power (AES Standard): 850 W

• Peak Power: 3500 W

• Sensitivity (1W/1m): 98 dB*

• Maximum Peak SPL: 133 dB**

• Coverage Pattern: 80° Symmetrical

• Drivers:

  • LF: 12-inch Woofer, 3″ (76 mm) voice coil, 500 W (AES)

  • MF: 8-inch Ultra-Low Distortion Mid/Low Driver, 2.5″ (65 mm) voice coil, 320 W (AES)

  • HF: Annular Diaphragm Compression Driver, 1.4″ (24mm) exit, 30W (AES)

• Crossover Frequencies: 200 Hz, 2 kHz (passive)

• Input Connector: Neutrik™ NL4MPR-BAG

• Nominal Impedance: LF: 8 Ω (±1) | MF/HF: 8 Ω (±2)

• Rigging Points: M6 Threaded Inserts

• Enclosure Material: Birch Plywood

• Enclosure Finish: RAL-Standard Water-Based Paint

• Dimensions (W × H × D): 340mm × 598mm × 420mm

• Net Weight: 18 kg
