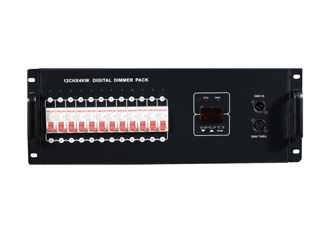

Product Overview
Model: V12
Power Supply: 3-Phase, 5-Wire system AC 380V ±10%, 50Hz ±5%
Signal Interface: Dual DMX-512 (1990)
Rated Power: 12 circuits × 4kW (maximum output up to 4kW per circuit)
Core Components: Utilizes original German-imported SCR (Silicon Controlled Rectifier) chips for stable and reliable performance.
Cooling System: Efficient heat dissipation with forced-air cooling and intelligent environmental control.
Interference Suppression: High-performance interference suppression chokes ensure excellent noise immunity and low acoustic noise, with current rise time between 220μs and 450μs.
Output & Control: Total 12 circuits, each 4kW. Features adjustable starting circuit and preheat value setting.
Dimming Curves: Per-channel selectable between linear dimming or switch mode (threshold at 50%). In switch mode, input values ≥50% yield full output, otherwise output is off.
Protection: Main circuit breaker with overload and short-circuit protection (high-breaking capacity).
Dimensions: 515 × 485 × 133 mm
Weight: 19 kg
