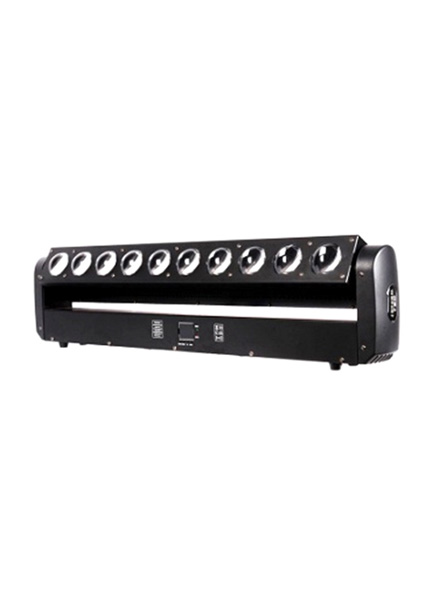

10x40W Beam Scanner [SPM-1040]

Product Overview

Input Voltage: AC100-240V, 50/60Hz
Rated Power: 450W
Light Source: 10×40W RGBW Quad-chip LEDs
Lamp Life: ≥50,000 hours
Beam Angle: 2°
Dimming: 0-100% linear dimming

Effects Configuration: Multiple built-in color mixing and beam effects; fast strobe (1-25 Hz); color macros and color fade effects; various strobe and graphic effects.

Scanning Parameters:

• Vertical Scanning: 180° (fine-tuning precision: 0.0037°)

Control:

• Channels: 5/7/14/18/42/54 channels selectable

• Protocol: DMX512 protocol

• Display: LCD screen with selectable Chinese/English language, 180° invertible display; button operation.

Electronic Features: Constant-current drive, temperature sensing, DMX channel level monitoring, fixture information query, intelligent fan speed control.

Installation: Omnidirectional. Standard hanging/clamp mounting compatible.

Physical Specifications:

• Dimensions: 1100×100×220mm

• Net Weight: 13.6kg

• IP Rating: IP20
