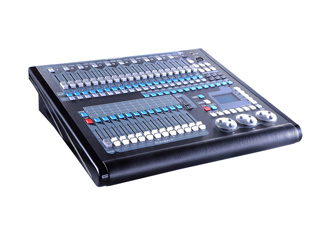

Product Overview
DMX Standard: Compliant with DMX512/1990; maximum 1,024 DMX control channels; 2 optically isolated signal outputs.
Control Capacity: Controls up to 120 moving lights or 120 dimmer channels.
New Features: Added Art-Net support with built-in emulator; added RDM (Remote Device Management) for bidirectional communication and remote address setting.
Fixture Library: Uses Pearl fixture library format (R20) with on-console library editing capability.
Display: Backlit LCD screen with switchable Chinese/English interface and selectable panel language.
Graphic Engine: Built-in graphic generator with 227 built-in effects (e.g., circle, spiral, rainbow, chase) for easy pattern control. All graphic parameters (amplitude, speed, interval, wave, direction) are independently adjustable.
Scene & Graphic Storage: Saves up to 5 graphics per scene; runs up to 10 graphics simultaneously.
Show Programming: Stores up to 100 shows for one-touch playback. Built-in and external MIDI timecode triggering for audio-visual synchronization.
Advanced Functions: Scene crossfade; graphic width parameter for faster programming; advanced grouping; stores 100 customizable presets (shared or independent) with four flexible storage modes.
Playback Memory: Stores 120 playbacks (for both multi-step and single-step scenes). Each multi-step scene supports up to 600 steps. Runs 12 playbacks simultaneously.
Control Surface: 12 submasters (faders) compatible with button-trigger and fader-control modes.
Advanced Channel Tools: Re-addressing, pan/tilt inversion, channel output reverse.
Data Integrity: Non-volatile memory protects data during power loss. USB backup/restore and data sharing between consoles of the same model.
Software & Programming: Remote software update capability; off-line pre-programming; preset faders for quick attribute control.
Show Control: Supports blackout, scene locking.
Dimensions: 510 × 460 × 120 mm
Weight: 9.6 kg
