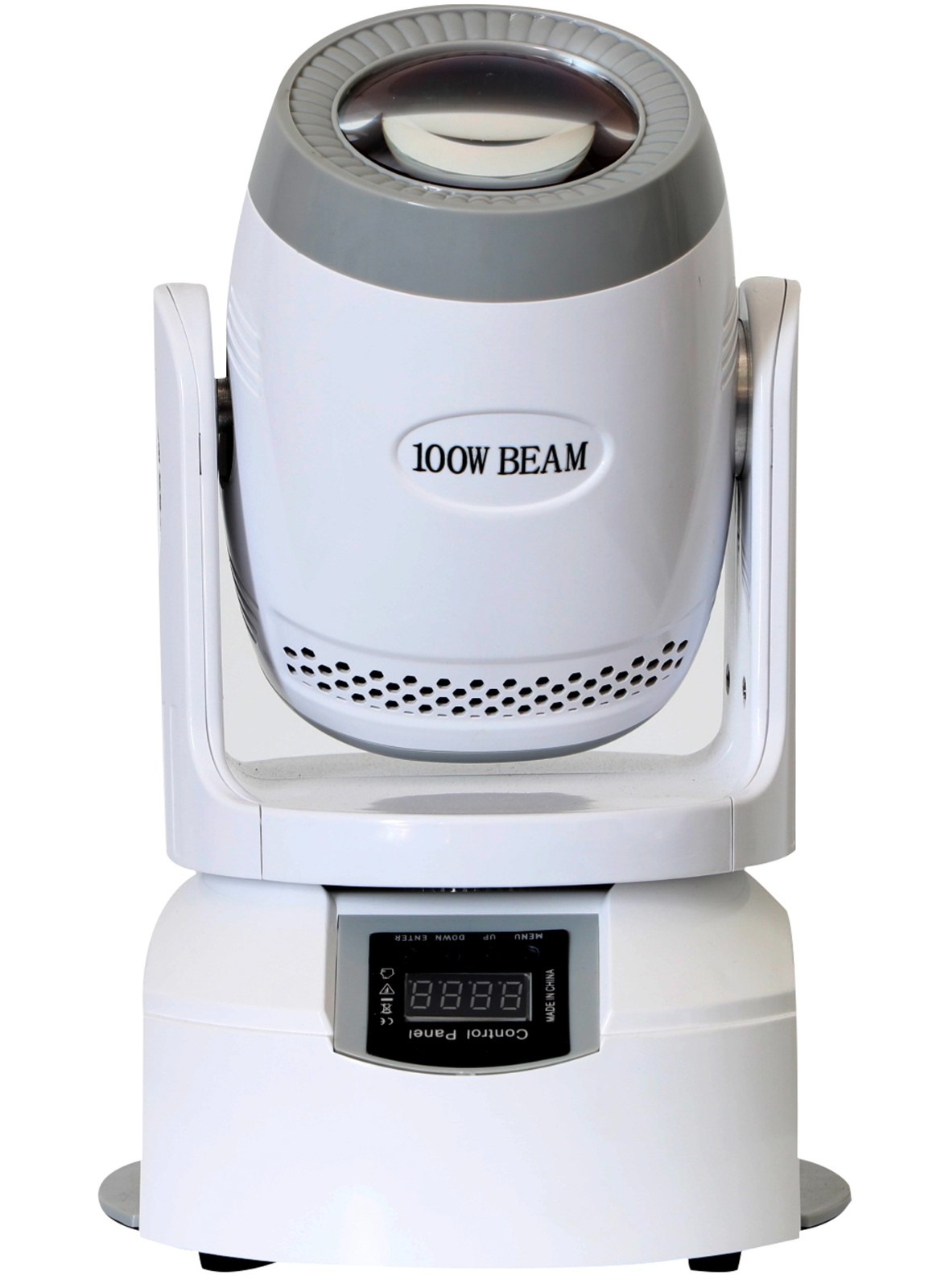

100W Mini Moving Head Light [BEAM 100]

Optical system

Light source: 100 high-power LED beads

Light source lifespan: 100,000,000 hours, energy-saving and environmentally friendly.

Color rendering index: Ra≥85, color temperature 7500K

High-precision optical glass, producing a coarse and natural beam with a beam angle of 8°.

Color system

A color palette, each color consisting of 7 color swatches plus a white light, providing a half-color effect. The color swatches can be positioned arbitrarily and can rotate in both directions.

Pattern system

One fixed pattern disc with seven fixed patterns plus white light; capable of rotation and flowing water; the pattern wheel can be positioned.

Effects Configuration

Standard configuration includes 12+6 prisms; 8-prism configuration is optional.

Independent dimming device, 0-100% smooth linear LED dimming

25 times/second high-speed LED strobe effect

Head shaking parameters

Angle: Horizontal scan: 540° (16-bit precision scan)

Vertical scan: 180° (16-bit precision scan)

Adjustable speed, automatic search and reset function

Control and programming

12-channel control mode

Control protocol: Standard DMX512 protocol, built-in self-running, voice-controlled program

Menu display: Digital display screen

Electronic control technology

intelligent control of wind turbines

Temperature electronic sensing detection

power supply

Input voltage: 100V-240V, 50/60HZ

Input power: 150W, power factor: ≥0.98

Size and weight

Product dimensions: 210×189×297mm

Net weight: 3kg

Protection rating: IP20
