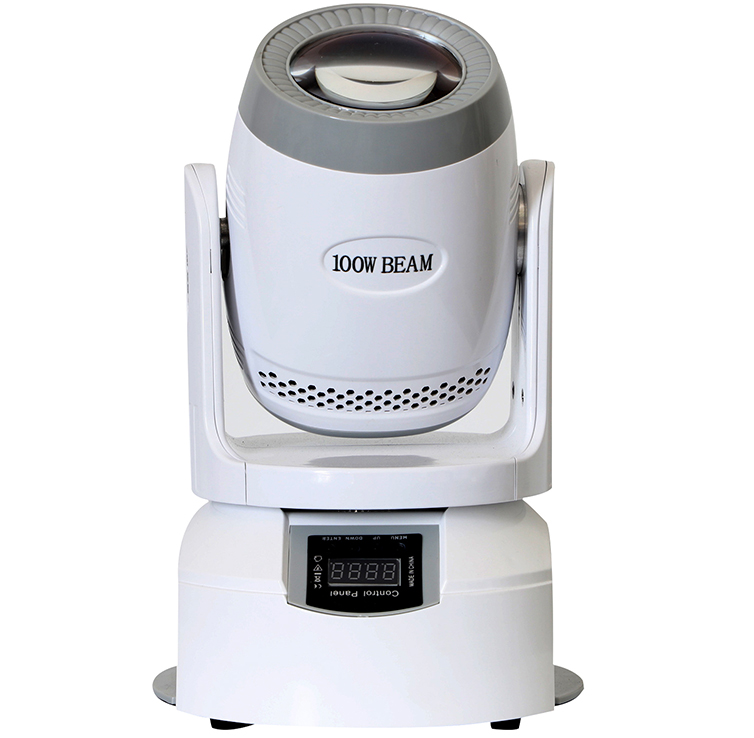

100W Compact Beam Moving Head [BEAM 100]

Product Overview

Optical System

• Light Source: 100W high-power LED chip

• Lifespan: 100,000 hours; energy-saving and eco-friendly

• Color Rendering Index: Ra ≥ 85

• Color Temperature: 7500K

• Optics: High-precision optical glass lens system

• Beam Angle: 8° (dense, natural beam)

Color System

• Color Wheel: 1 fixed color wheel with 7 dichroic colors + white

• Features: Half-color effects, indexed color positioning, bi-directional rotation

Gobo System

• Gobo Wheel: 1 fixed gobo wheel with 7 static patterns + white

• Effects: Gobo rotation, animation effects; indexed gobo positioning

Effects

• Prism: Standard 12-facet + 6-facet prism; optional 8-facet prism

• Dimming: Independent 0-100% smooth linear LED dimming

• Strobe: High-speed LED strobe effect up to 25 flashes per second

Movement

• Pan: 540° (16-bit precision)

• Tilt: 180° (16-bit precision)

• Features: Adjustable speed, auto reset/search function

Control & Programming

• Control Channels: 12-channel control mode

• Protocol: Standard DMX512; built-in sound-active and automatic programs

• Display: Digital menu display

Electrical & Thermal Management

• Cooling: Intelligent fan control

• Protection: Electronic temperature sensing

Power

• Input Voltage: AC 100-240V, 50/60Hz

• Power Consumption: 150W

• Power Factor: ≥0.98

Physical Specifications

• Dimensions: 210 × 189 × 297 mm

• Weight: 3 kg (net)

• Protection Rating: IP20
